Stainless steel diamond plate, also known as stainless steel tread plate or diamond tread plate, is a type of stainless steel sheet that features a raised diamond pattern on the surface. The diamond pattern consists of small, raised diamonds or lozenges that provide both aesthetic appeal and enhanced traction.
Stainless steel diamond plate, also known as stainless steel tread plate or diamond tread plate, is a type of stainless steel sheet that features a raised diamond pattern on the surface. The diamond pattern consists of small, raised diamonds or lozenges that provide both aesthetic appeal and enhanced traction.
Product Type | Stainless Steel Plate & Sheet |
Thickness | Cold Roll:0.1~3 mm Hot Roll:3~100 mm (Can be Customized) |
Length | 2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc. (Can be Customized) |
Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. (Can be Customized) |
SurfaceFinish | BA, 2B, 2D, 4K, 6K, 8K, NO.1, NO.4, HL, Embossed |
Other Choices | Leveling: improve flatness,
esp. for items with high flatness request. Skin-Pass: improve flatness, higher
brightness Cutting: Laser cutting, help the customer to cut the required size |
Edge | Mill Edge / Slit Edge |
Shape | round, square and other shapes (Can be Customized) |
Technique | Hot Rolled / Cold Rolled |
Processing Type | Cutting, bending, stamping, welding, CNC machining |
Cutting Type | Laser cutting; water-jet cutting; flame cutting |
Certification | ISO, SGS,BV |
Standard | GB JIS ASTM ASME EN |
Grade (ASTM UNS) |
200 series: 201, 202, 202cu, 204 300 series: 301, 302, 303, 304, 304L, 309, 309S, 310, 310s, 316, 316L, 316Ti, 317L, 321, 347, 347H 400 series: 409, 409L, 410, 410S, 420, 430, 431, 439, 440, 441, 444 Others: 2205,2507,2906,330,660 630 631,17-4ph,17-7ph, S318039, 904L.etc S32205,2507,254SMOS,32760,253MA,N08926 Duplex stainless steel: S22053, S25073, S22253, S31803, S32205, S32304 |
Grade (EN) |
1.4301,1.4307,1.4541,1.4401,1.4404,1.4571,1.4438,1.4539,1.4547, 1.4529,1.4562,1.4410,1.4878,1.4845,1.4828,1.4876,2.4858,2.4819 |
Application | It is widely used in high-temperature
and electric industry, medical devices, construction, chemistry, food industry, agriculture, and
ship components. It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc. |
Packaging & Delivery |
In bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands 20ftGP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ftGP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ftHC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Couldn't find steel grades you need? Please feel free to send product details to us. We would offer you a free quote as soon as possible. Free Sample Available. |

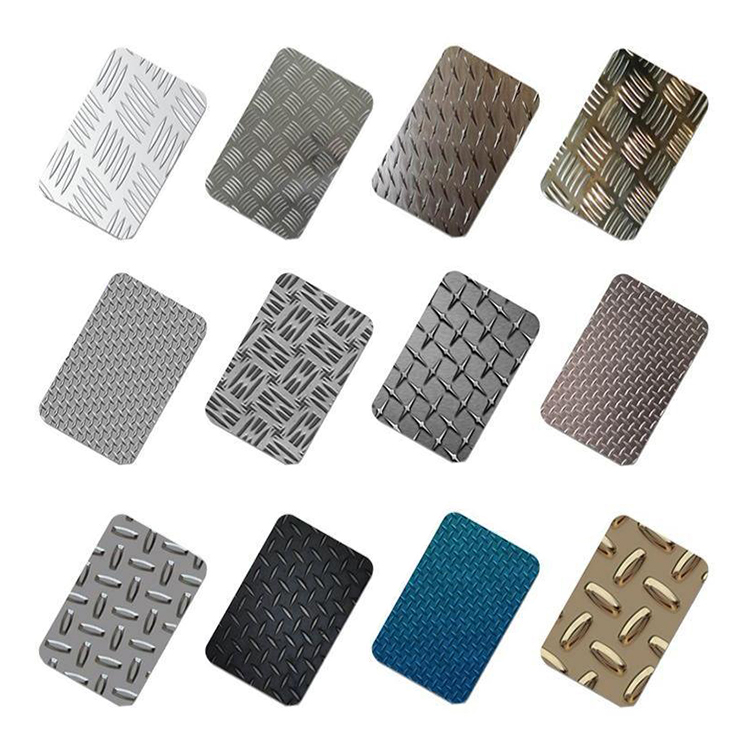

Stainless Chequer Plate

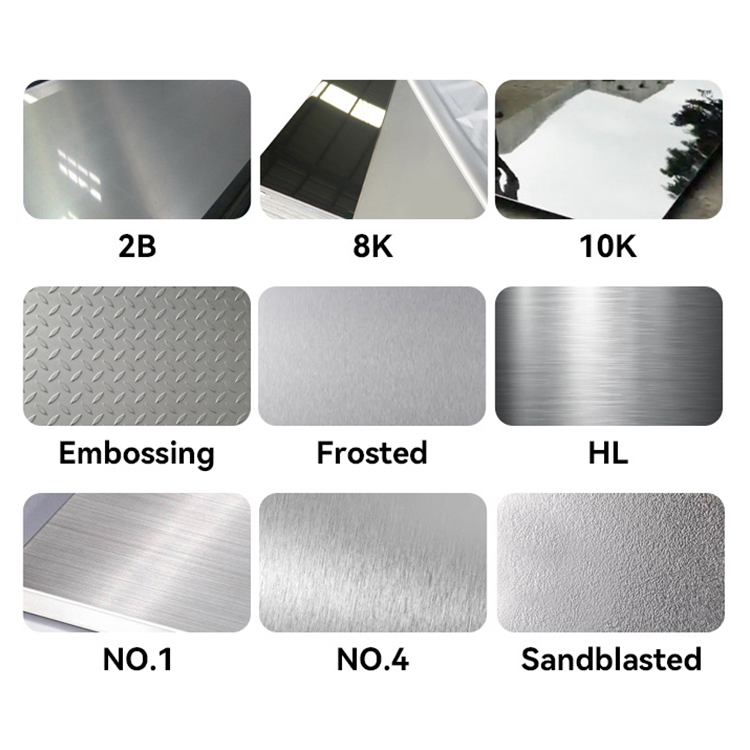

Surface finish | Thickness | Size | Characteristics | Application |
NO. 1 | 3-100mm |
Width:
1500/1800/2000mm; Length: any length |
Finished by hot-rolling, annealing and pickling, characterized by white pickled surface | Chemical industry equipment, Industrial tanks |
2B | 0.2-6.0mm |
Width:
1000/1219/1500/1800/2000mm; Length: any length |
Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface | General Application Medical Instruments,Tableware |
No. BA (Bright Annealed) |
0.2-3.0mm |
Width:
1000mm,1219mm; Length: any length |
Bright heat treatment after cold rolling | Kitchen utensil, kitchen ware,architectural purpose |
NO.4 Satin | 0.3-8.0mm |
Width:
1000/1219/1500mm; Length: any length |
Polishing with No. 150 to No.320 mesh abrasivesThe most popular finishes | Milk & Food processing acilities, Hospital Equipment, Bath-tub |
8K Mirror | 0.3-10mm |
Width:
1000/1219/1500mm; Length: any length |
A mirror-like reflective surface by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior-Exterior decoration forbuilding |
HL(Hairline) | 0.3-8mm |
Width:
1000/1219/1500mm; Length: any length |
Finished by continuous linear polishing | Architectural purposes, escalators, kitchen ware vehicles |
Stainless steel diamond plate is commonly used in applications that require slip resistance, durability, and a visually appealing look. Here are some key features and uses of stainless steel diamond plate:
1. Slip Resistance: The raised diamond pattern on the plate’s surface provides improved traction, making it ideal for areas with slippery conditions. It is commonly used on ramps, stairs, platforms, and walkways where slip resistance is crucial.
2. Durability and Corrosion Resistance: Like other stainless steel products, diamond plate exhibits excellent durability and corrosion resistance. It can withstand harsh environments, heavy foot traffic, and exposure to chemicals and moisture, making it suitable for industrial and outdoor applications.
3. Protection and Decoration: Stainless steel diamond plate not only enhances safety but also adds a decorative touch to spaces. It is often used as wall cladding, protective coverings, and trim in architectural and interior design projects, providing both functionality and visual appeal.
4. Transportation Industry: Diamond plate finds extensive usage in the transportation industry, particularly in truck beds, trailer floors, and loading docks. The raised pattern prevents cargo from shifting during transportation and provides a durable and slip-resistant surface for workers.
5. Machinery and Equipment: Stainless steel diamond plate is employed in manufacturing machinery and equipment for surfaces subject to heavy use. It is ideal for workbenches, worktops, toolboxes, and machinery covers, providing durability and a non-slip surface for operators.
6. Decorative Applications: The distinctive diamond pattern of stainless steel diamond plate is also utilized in automotive customization, interior design, and other decorative applications where a visually appealing texture is desired.
In summary, stainless steel diamond plate is a versatile and durable product that offers slip resistance, corrosion resistance, and decorative value. It is widely used in industrial, commercial, transportation, and architectural settings, providing a combination of function and aesthetics.
