Ti Gr.11

Grade 11 (TA9-1) is comparable to Grade 1 titanium machining, with the addition of a small amount of palladium for improved corrosion resistance against crevice erosion and acidic chloride environments.

Chemical Composition	0.03N-0.08C-0.015H-0.2Fe-0.18O-0.12~0.25Pd-99Ti
Physical Property	• Tensile Strength: 240Mpa • Yield Strength: 170-310 MPa • Elongation: 24%

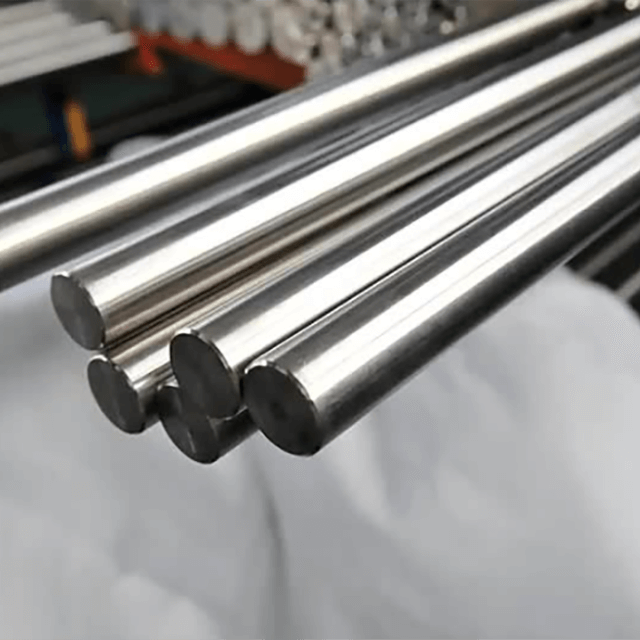

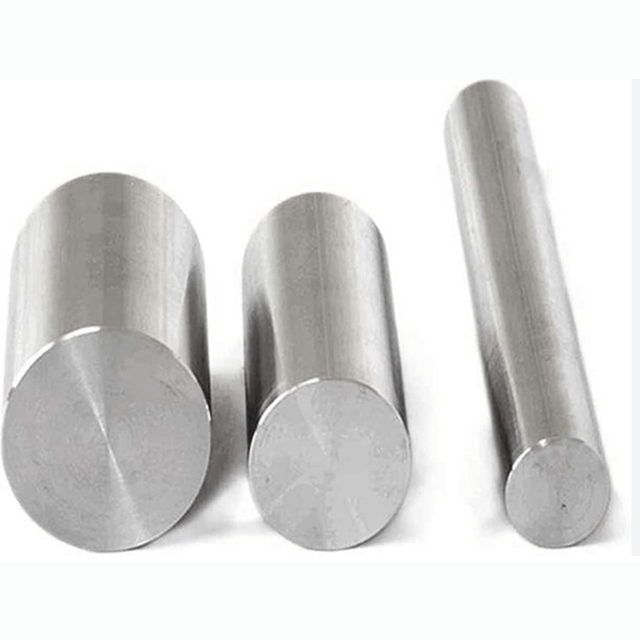

Stock & Dimensions	Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs. • Bar: 0.5~600mm Diameter • Coil: 0.5~150mm Thick • Plate: 0.5~200mm Thick • Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick • Available in specific sizes
Product Forms	We provide you with a variety of product forms, including but not limited to: • Bar/Rod • Pipe/Tube • Coil/Strip • Plate/Sheet/Circle • Wire • Fitting (Flange, Elbow, Tee...) • Customize

Essential details

Grade 11 is very similar to Grade 1. (Grade 1 titanium machining) except a little palladium is added for corrosion resistance, making it an alloy. This corrosion resistance is useful against crevice erosion and reducing acids in chloride environments.

Other useful properties include optimum ductility, cold formability, useful strength, impact toughness and excellent weldability.

This alloy can be used in the same titanium applications as Grade 1. especially where corrosion is a concern.

Application:

- Chemical processing

-Chlorate Manufacturing

- Auto parts

-Stamping

- Fastener

-High-end electroplating

- Welding wire

- Seawater Corrosion Resistant Pipelines for Ships

- Seawater desalination system components (marine applications)
