CP Ti Gr.1

Gr.1 Titanium, also known as TA1. is the most malleable grade of industrial pure titanium, due to its low iron and oxygen content. It boasts the highest plastic toughness, making it ideal for forming, and features excellent corrosion resistance and superior impact toughness when exposed to seawater.

Chemical Composition	0.03N-0.08C-0.015H-0.2Fe-0.18O-99Ti
Physical Property	• Tensile Strength: 240Mpa • Yield Strength: 170Mpa • Elongation: 24% • Area of Reducation: 30%

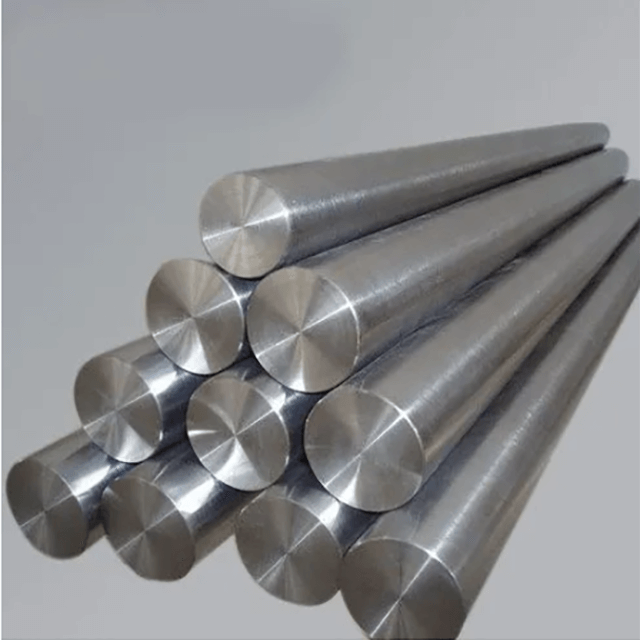

Stock & Dimensions	Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs. • Bar: 0.5~600mm Diameter • Coil: 0.5~150mm Thick • Plate: 0.5~200mm Thick • Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick • Available in specific sizes
Product Forms	We provide you with a variety of product forms, including but not limited to: • Bar/Rod • Pipe/Tube • Coil/Strip • Plate/Sheet/Circle • Wire • Fitting (Flange, Elbow, Tee...) • Customize

Essential details

TA1 Titanium is the first of four commercial pure titanium grades. It is a kind of industrial pure titanium with low iron and oxygen, which makes it the softest and most ductile and plastic toughness among these grades of industrial pure titanium, so it has the best formability and excellent corrosion resistance (in seawater) and high impact toughness.

In the industry, TA1 is often used to manufacture various plates, parts, forgings, wires and pipes that work at a temperature of -253 degrees to 350 degrees and are not stressed.

Application:

- Auto parts

- Aircraft skeleton

- Stamping

- Fastener

- High-end electroplating

- Welding wire

- Seawater Corrosion Resistant Pipelines for Ships

- Seawater desalination system components

- Chemical parts (heat exchangers, coolers)

- Sporting goods

- Military industry
